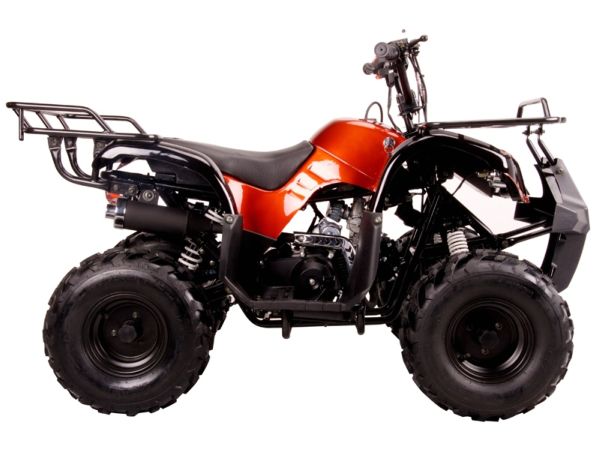

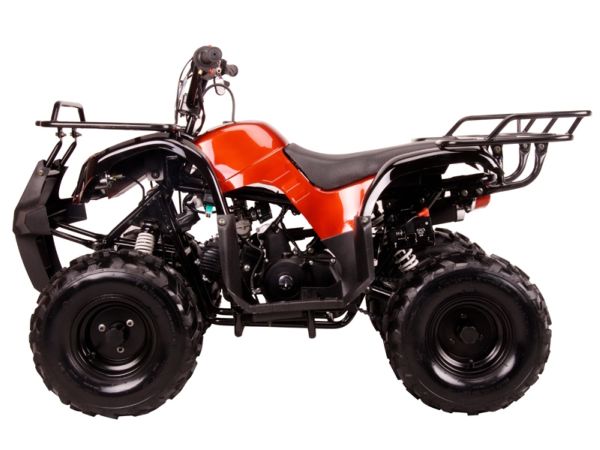

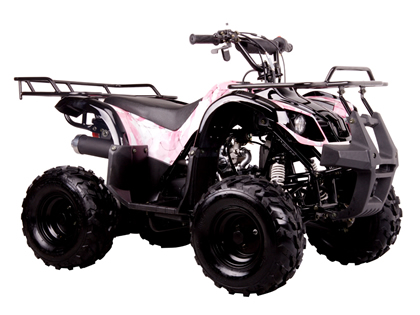

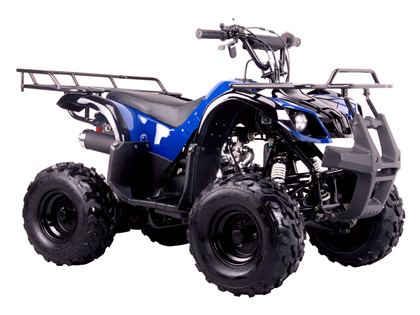

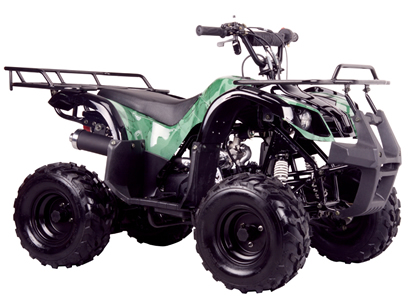

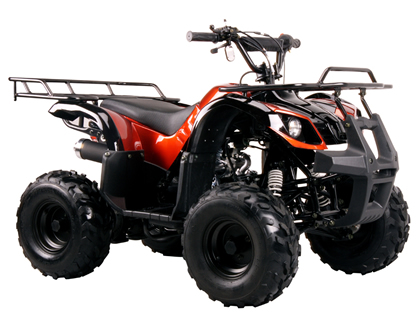

ATV-3050D 110cc mid-size ATV only $575.00 W/Free Shipping!
The ATV-3050D is a step up from the ATV-3050C. It is bigger and has front and rear racks. It is perfect for ages 6-9. This is a good begginer utility style ATV. It still has all of the same features as the 3050C such as electric start, remote shut-off, front and rear brakes, headlights and tailights, and foot brake. Specifications
SPECIFICATIONS ： ATV-3050D-AB
ENGINE INFO ：
Engine type ： 110cc 4-stroke,single cylinder
Displacement ： 110cc
Cooling ： air-cooled
Max horsepower ： 5.0kW/7,500r/min
Max torque ： 7.0N.m/5,500r/min (N.m/r/min)
Bore*stroke ： 52.4x49.5mm
Max speed ： 65km/h
Ignition ： CDI
Starting system ： Electric start
Battery ： 12V, 5Ah
Engine oil ： 0.9L
CHASSIS ETC ：
Transmission ： automatic
Final Drive ： chain, rear wheel drive
Driving wheel ： Rear wheel force
Front Suspension ： double a-arm
Rear Suspension ： single swing arm
Front Brake ： hub brake
Rear Brake ： disc brake
Brake operation ： disc brake / foot brake
Tires,front/rear ： 16 x 8.0-7 /16 x 8.0-7
Fuel capacity/type ： 90#
Weight,G.W./N.W ： 118kg /98kg
Max load ： 65kg
DIMENSIONS ：
Wheelbase ： 855mm
L*W*H ： 1,465 x 920x 925mm
Height to seat ： 620mm
Min ground clearance ： 140mm
Carton size ： 1190 x 720 x 640mm
Shipping info ： Qty/40' HQ: 115pcs
